30 kW
Level 3 Charge
Residual Current, Emergency shutdown with alarm
Grid Responsive Metering
DC 30 kW (415 VAC) 75A – CCS 2
7” TFT LCD Touch Screen integrated display
Compatible with Open Charge Point Protocol (OCPP)
Seamless energy management with Mobile App & RFID card
Electric shock Proof
VARIANT
| KEY FEATURES
- Seamless data management and user authentication with Mobile App
- Smart Auto Power cut off for Charging and Inactivity
- OCPP 1.6 Compliant
- Integrated Smart LED Indicators with Energy Meter
- BLE/Wifi Compatibility and OTA support
- Short circuit and overheating resilient
- Power & Voltage Surge Protection
- CCS 2 Charging
Product Description

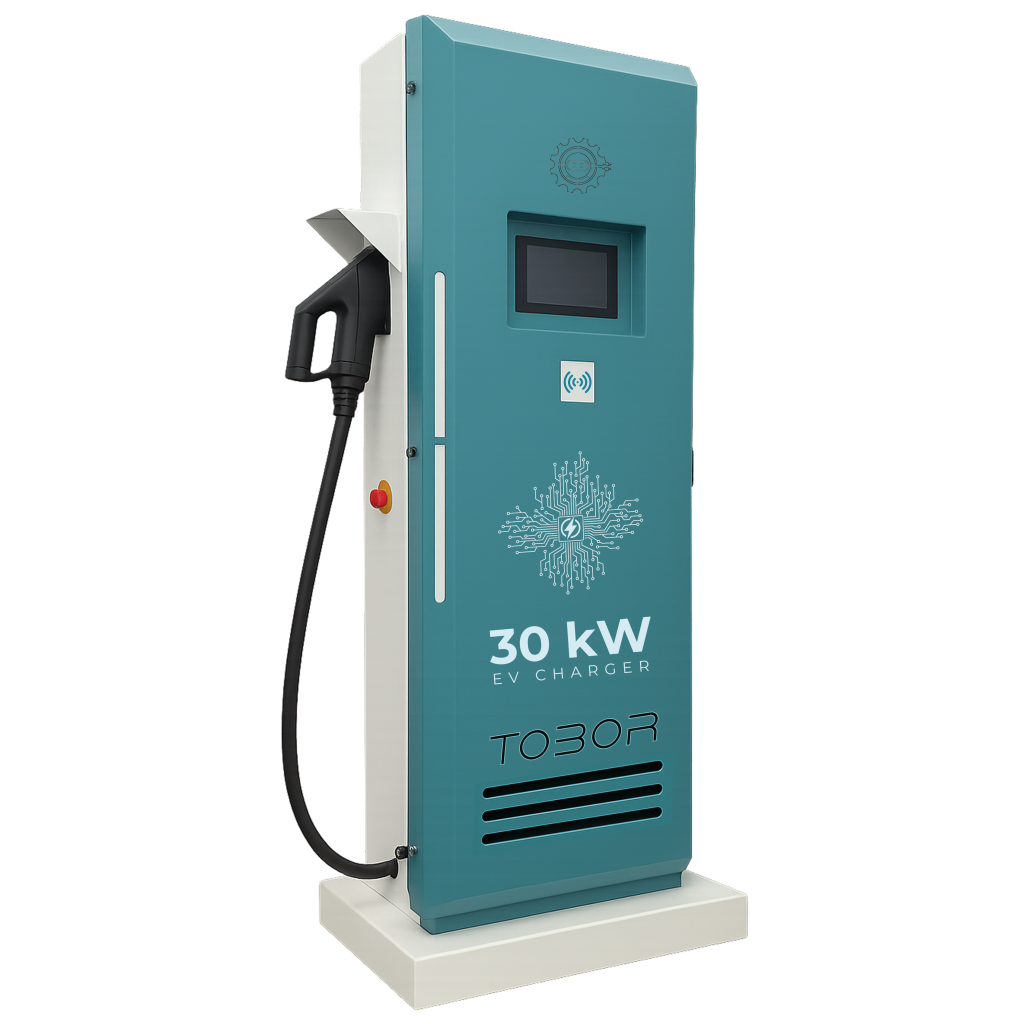

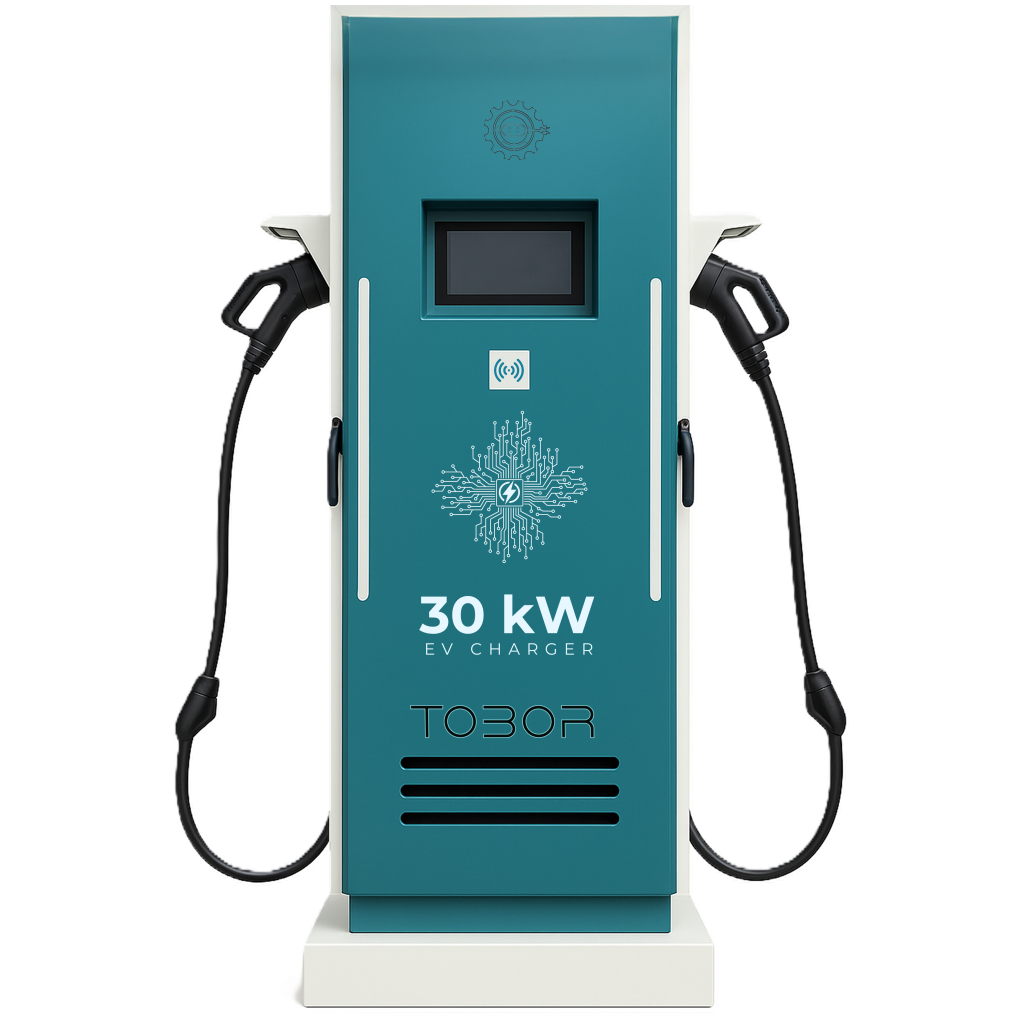

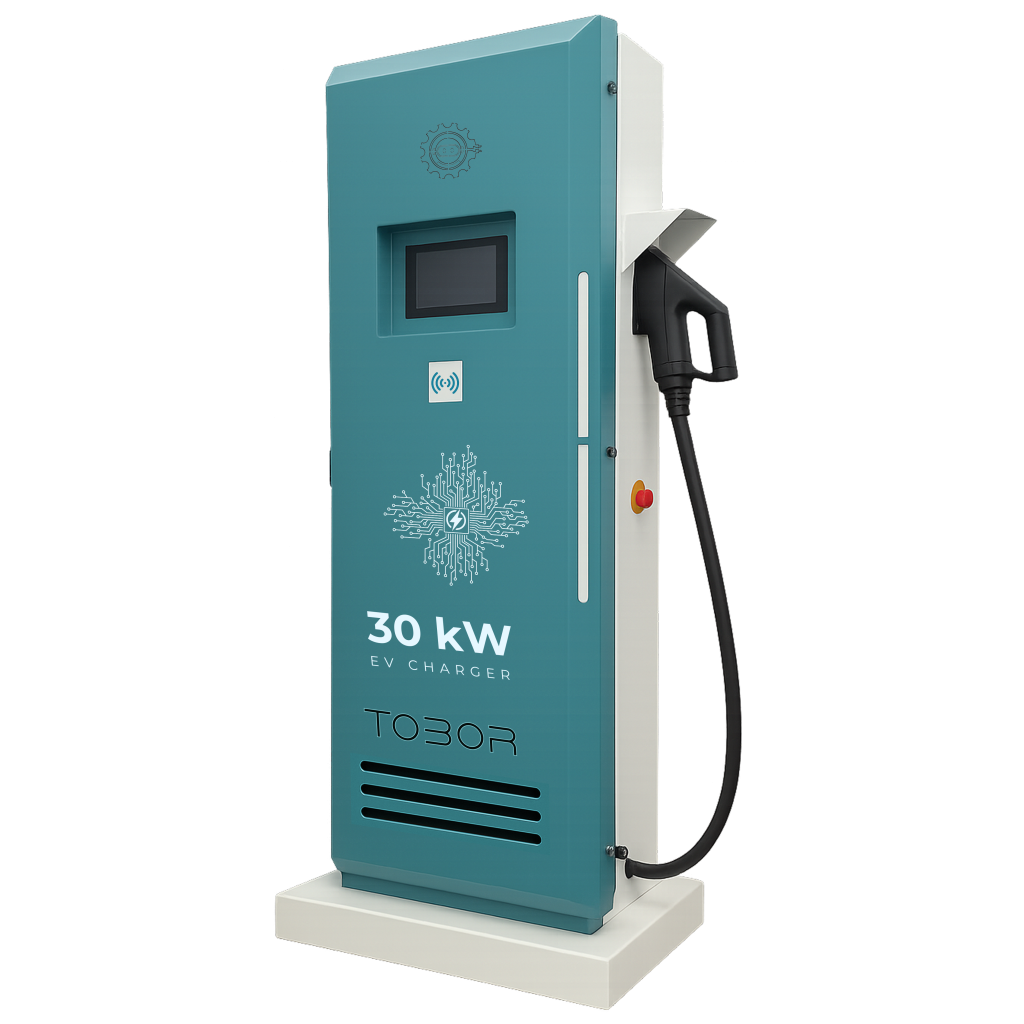

Tobor Level 3 (30 kW) is a fast DC Charger with state-of-the-art features for a seamless public charging experience. It is specifically designed for 4 Wheelers. This charger is best suited for highways and retail outlets.
Specifications
- Mounting: Wall Mount or Floor Stand
- Charging Time: 45–90 Minutes: 4 Wheeler
- Compatibility: 4 Wheeler
- Warranty: 2 Years
Frequently Asked Questions
We’ve answered a few FAQs to get you started. Please don’t hesitate to reach out with more.
Which electric vehicles can be charged using this 30 kW AC charger?
The charger is designed for 4-wheeler EVs that support 3-phase AC input with Type 2 connectors, ideal for medium and large electric cars but not recommended for 2- or 3-wheeler vehicles.
What protections are in place to ensure safe operation of this charger?
The device features safety mechanisms like overcurrent protection, short circuit detection, surge protection, temperature monitoring, and automatic shutdown for reliable and safe charging standards similar to those followed in any premium DC charger for EV system.
Is the Tobor 30 kW charger suitable for outdoor use?
Yes. The TOBOR 30 kW DC charger offers IK10-rated protection, which means it is highly resistant to mechanical impact and tampering. This protection is compliant with IEC 61851-1 Section 11.11.2, including the charger display area.
How can I purchase the Tobor 30 kW AC charger?
You can order the charger online through the official Tobor website, ensuring genuine products and full after-sales support. Tobor offers high-performance DC chargers for EVs for faster commercial charging needs.
What power supply and mounting options does the Tobor 30 kW charger require?
Installation requires a 3-phase power supply and can be either wall-mounted or installed on a pedestal. It fits well in parking garages or commercial lots with adequate space and ventilation.
